Navicade™

Select a Color:

Channelizing cone that's great for narrow roadways when space is an issue.

How to Buy
All Products
Traffic Product Type
Traffic Application

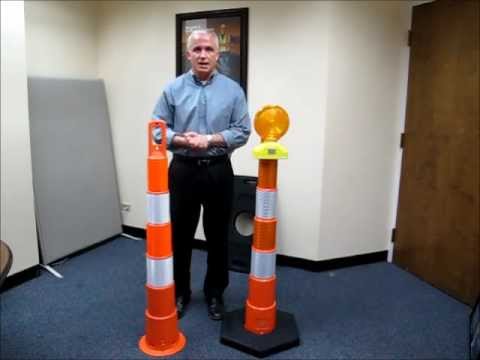

Navicade™
Slim design channelizer
  • 42"H (49.5" with handle)
Oversized handle
  • Easy to grab with gloved hand
  • Holds a flashing light
Stackable
  • With or without base
Recycled rubber bases - 3 sizes
  • 10, 16, or 30 lbs.
Flashing light mounting receptacle
Customize with your logo
  • Can be stenciled
  • Molded-in, minimum qty. required
Can be part of Rooftop Perimeter Edge System
  • 42" Navicade with 30 lb. base can be part of a warning line that is OSHA compliant
MASH Accepted - WZ-301
  • Meets MUTCD Standards
Made in the U.S.A.
  • State Reference Guide

    Learn more about traffic product certifications and specifications for your state.

  • Additional Information

    Orange and White bands of retroreflective sheeting available: Engineer Grade, High Intensity Prismatic Grade, and Diamond Grade.

    Up to 4 bands of sheeting
    - choose 6”W and/or 4”W bands

  • Accessories

    Barricade Lights

    Recycled rubber bases will not chip, crack, or warp.

    Base Options Dimensions

    Dimensions for 10 and 16 lb. base: Hole 7.75" inside diameter PDF for 10 lb. PDF for 16 lb.

    Dimensions for 30 lb. base: 30" x 14.5", 2.4"H, Hole 7.75" inside diameter PDF for 30 lb.

  • Specifications

    Dimensions: 7.6"W x 50.4"H

    Weight: 3 lbs.

    Part Number: 650R1

  • Documents

    Navicade Product Information

    Certificate of Compliance

    Certificate of Compliance Without Lights

    Certificate of Compliance SC

    FHWA Acceptance - WZ Letter

  • Part Numbers
    Item Number Sheeting Type Description
    650R1-O None Navicade 42" Orange - No reflective bands
    650R1-O-4-EG-A 4 - 4" EG 4 - 4" Bands of Engineer Grade Sheeting - Orange/White/Orange/White
    650R1-O-4-HIP-A 4 - 4" HIP 4 - 4" Bands of High Intensity Prismatic Grade Sheeting - Orange/White/Orange/White
    650R1-O-4-DG-A 4 - 4" DG 4 - 4" Bands of Diamond Grade Sheeting - Orange/White/Orange/White
    650R1-O-6-EG-A 4 - 6" EG 4 - 6" Bands of Engineer Grade Sheeting - Orange/White/Orange/White
    650R1-O-6-HIP-A 4 - 6" HIP 4 - 6" Bands of High Intensity Prismatic Grade Sheeting - Orange/White/Orange/White
    650R1-O-6-DG-A 4 - 6" DG 4 - 6" Bands of Diamond Grade Sheeting - Orange/White/Orange/White
    650R1-O-DG-HIP-4 2 - 4" DG
    2 - 4" HIP    		 2- 4" Bands of Orange Diamond Grade Sheeting and 2 - 4" Bands of White High Intensity Prismatic Sheeting
    650R1-O-DG-HIP-6 2 - 6" DG
    2 - 6" HIP    		 2 - 6" Bands of Orange Diamond Grade Sheeting and 2 -6" Bands of White High Intensity Prismatic Sheeting
    650R1-O-4-6-W-EG 1 - 4" EG
    1 - 6" EG    		 1- 4" Band of White Engineering Grade Sheeting and 1- 6" Band of White Engineering Grade Sheeting
    650R1-O-4-6-W-HIP 1 - 4" HIP
    1 - 6" HIP    		 1- 4" Band of White High Intensity Grade Sheeting and 1- 6" Band of White High Intensity Prismatic Grade Sheeting
    650R1-O-4-6-W-DG 1 - 4" DG
    1 - 6" DG    		 1- 4" Band of White Diamond Grade Sheeting and 1- 6" Band of White Diamond Grade Sheeting
    650-RB-10 Black 10 lb. Rubber Base, hexagon shaped, 7.75" hole, 20.25"W
    650-RB-16 Black 16 lb. Rubber Base, hexagon shaped, 7.75" hole, 20.25"W
    650-RB-30 Black 30 lb. Rubber Base, 7.75" hole, 30.5" x 14.5"
