Hydrocade™ Water Barricade System
Hydrocade™ Water Barricade System
72"L x 32"H
  • Longitudinal channelizing device
  • Durable construction, impact resistant
Unique stacking design.
  • 200 units per truckload
Conforms to any roadway design
  • Turns 90 degrees
  • Adjusts to curbs up to a 6 degree incline

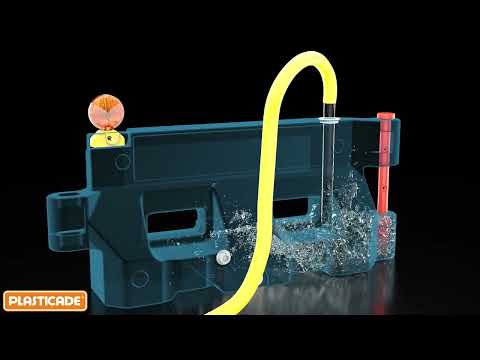

Fill with 81 gallons for deployable weight of 745 lbs.
  • 67 lbs. when empty
  • No heavy machinery needed for install
Connector pins snap onto barricade for storage
  • Sturdy and tough pins
  • Built with strength-enhancing channels

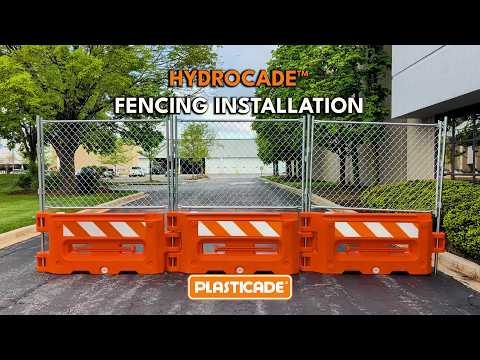

Accepts fence panels
  • 72.5”W x 96"H
  • Not MASH tested with fencing
Two forklift access points
Crash tested for TL-3 MASH Acceptance
  • Submitted to the FHWA
Meets MUTCD Standards
Made in the U.S.A.
  • State Reference Guide

    Learn more about traffic product certifications and specifications for your state.

  • Additional Information

    Orange striped retroreflective sheeting available in Engineer Grade and High Intensity Prismatic Grade.

    Hydrocade Drawing with Dimensions
  • Accessories

    • Light ledge for standard barricade light, Bolt Size Needed - 5 1/2” - 13 (Part 8375)

    • Optional fence panels

  • Specifications

    Overall Dimensions: 79” L x 17.5” D x 32” H

    Top Width: 8”

    Pin Dimensions: 33"L x 4"W (at head of pin)

    Weight: Empty - 67 lbs., Water filled - 745 lbs.

    Fence Panel Specification

  • Documents

    Hydrocade Water Barricade System Product Information

    Deployment Instructions

    Certificate of Compliance

  • Part Numbers
    Item Number Sheeting Type Description
    HYD-O-KIT NONE Orange, Water filled barricade with connector pin, no sheeting
    HYD-O-EGLR-KIT EG Orange, Water filled barricade with connector pin, with engineer grade striped sheeting.
    HYD-O-HIPLR-KIT HIP Orange, Water filled barricade with connector pin, with high intensity prismatic grade striped sheeting.
    HYD-W-KIT NONE White, Water filled barricade with connector pin, no sheeting
    HYD-W-EGLR-KIT EG White, Water filled barricade with connector pin, with engineer grade striped sheeting
    HYD-W-HIPLR-KIT HIP White, Water filled barricade with connector pin, with high intensity prismatic striped sheeting.
    HYD-PIN-W
    		White Pin for Barricade
    HYD-PIN-O Orange Pin for Barricade
    HYD-FPOST-KIT 84"L Fence post for Hydrocade with Post Pin. Use with HYD-FPANEL7. One post is needed for each Hydrocade unit plus one additional for last unit in line.
    HYD-FPANEL7 Fence panel for Hydrocade. 69"W x 51"H x 1.3" diameter pipe. One panel is needed for each Hydrocade unit.
    Assembled height is 7 feet
    8072-BOLT5KIT Barricade light kit for the Hydrocade.
    Includes 5 1/2" - 13 hex bolt with standard Barricade Light (part 8072).
    HYD-WRENCH Hydrocade drain plug wrench
    Use for removal and tightening of drain plug. Fits 3/4" and 2" bungs.
